This page contains the defined functional and non-functional requirements of the TECHCUP Football Platform.

Functional requirements describe the system functionalities and services that must be provided to support tournament organization and participant interaction.

Non-functional requirements describe the quality attributes and architectural constraints that the TECHCUP system must satisfy in order to ensure reliability, security, and proper system operation.

Below is the list of all requirements classified according to their type.

Functional requirements list

Non-functional requirements

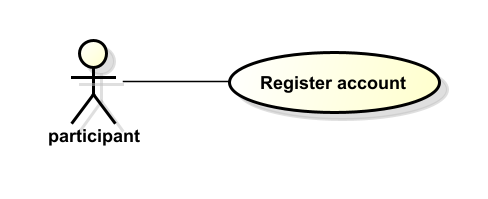

FR-01 - User registration

Field	Description
ID	FR-01
Requirement name	User registration
Microservice	Identity
Description	The system must allow users to register using institutional email accounts (students, graduates, professors, administrative staff) or personal email accounts for family members. During registration, the system must capture: full name, email, password, relationship with the institution, academic program, semester (if student), date of birth, identification and type, and default status (active).
Preconditions	The user must belong to one of the allowed categories: student, graduate, professor, administrative staff member or family member.
Actor	Participant
Main flow	1. The actor accesses the registration page. 2. The actor enters the required personal information. 3. The actor selects their role (player or guest) at registration time. 4. The system validates the email domain to determine the user type. 5. The system creates the user account with active status by default.
Use case diagram
Postconditions	The user account is created and the participant can access the system according to their assigned role.

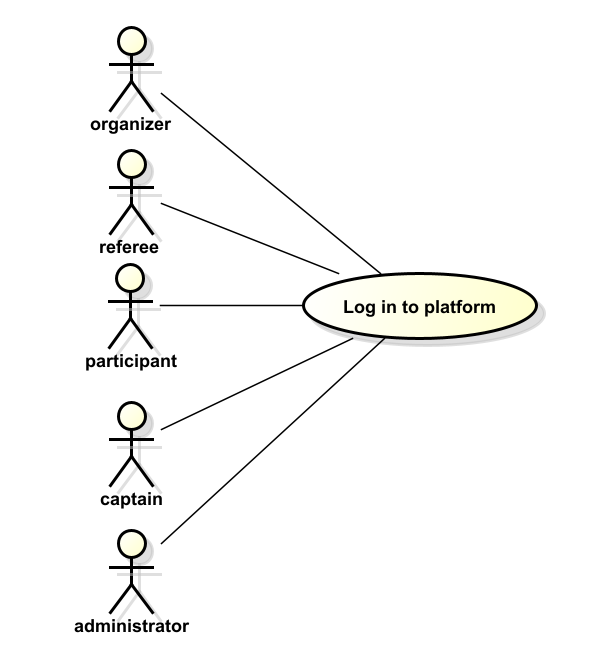

FR-02 - User authentication

Field	Description
ID	FR-02
Requirement name	User authentication
Microservice	Identity
Description	The system must allow registered users to authenticate using their email and password. Upon successful authentication, the system must generate a JWT token to allow access to the other services. Passwords must be stored encrypted.
Preconditions	The user must already be registered in the system and have valid login credentials.
Actor	Participant, Captain, Organizer, Referee, Administrator
Main flow	1. The actor accesses the login page. 2. The actor enters their credentials. 3. The system validates the credentials and verifies the password hash. 4. The system generates a JWT token. 5. The system grants access according to the user’s role.
Use case diagram
Postconditions	The authenticated user gains access to the platform and can interact with the system according to their permissions. The session has an expiration time.

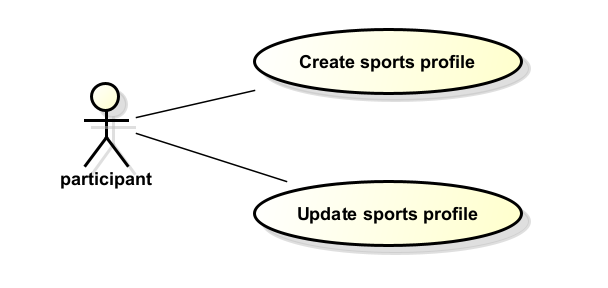

FR-03 - Sports profile management

Field	Description
ID	FR-03
Requirement name	Sports profile management
Microservice	Users & Players
Description	The system must allow participants to create and update their sports profile, including playing position (goalkeeper, defender, midfielder, forward), jersey number, and profile photo. A sports profile cannot be deleted. Profile updates are only allowed when the player is not assigned to a team.
Preconditions	The participant must be authenticated in the system with the player role.
Actor	Participant
Main flow	1. The participant accesses the profile management section. 2. The participant enters or updates sports profile information. 3. The system validates that the player is not currently assigned to a team (for updates). 4. The system stores the information.
Use case diagram
Postconditions	The participant’s sports profile is stored and available for team captains to consult.

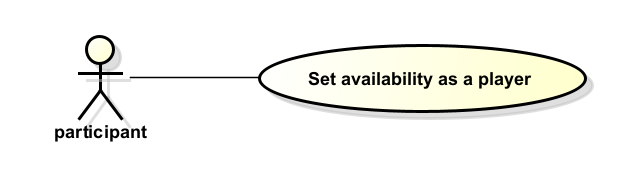

FR-04 - Player availability management

Field	Description
ID	FR-04
Requirement name	Player availability management
Microservice	Users & Players
Description	The system must allow participants to indicate their availability to join a team so that captains can contact and recruit them. Players can send one team membership request at a time.
Preconditions	The participant must be authenticated and have a completed sports profile.
Actor	Participant
Main flow	1. The participant accesses the availability settings. 2. The participant marks themselves as available for recruitment. 3. The system updates the availability status and makes the player discoverable by captains.
Use case diagram
Postconditions	The participant appears as available in player recruitment searches performed by captains.

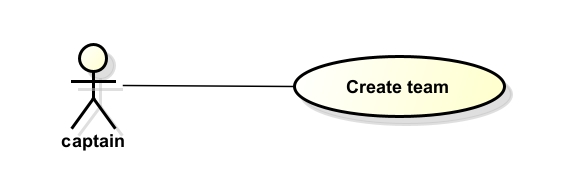

FR-05 - Team creation

Field	Description
ID	FR-05
Requirement name	Team creation
Microservice	Teams
Description	The system must allow a participant with the captain role to create a team by providing a name and team colors. The team must comply with: minimum 7 players, maximum 12 players, no duplicate jersey numbers, and more than half of its members must be from the Systems, AI, Cybersecurity, or Statistical Engineering programs.
Preconditions	The participant must be authenticated with the captain role assigned by the organizer.
Actor	Captain
Main flow	1. The captain accesses the team creation interface. 2. The captain enters the required team information (name and colors). 3. The system validates the information and creates the team. 4. The captain becomes the team manager.
Use case diagram
Postconditions	A new team is created in the system and the captain can begin recruiting players.

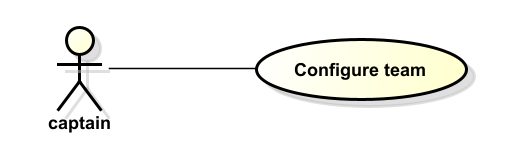

FR-06 - Team configuration

Field	Description
ID	FR-06
Requirement name	Team configuration
Microservice	Teams
Description	The system must allow captains to update their team name, as long as the team is not registered in an active or in-progress tournament.
Preconditions	The captain must have an existing team and be authenticated in the system.
Actor	Captain
Main flow	1. The captain accesses the team configuration page. 2. The captain updates the team name. 3. The system validates that no active or in-progress tournament registration exists. 4. The system stores the updated information.
Use case diagram
Postconditions	The team information is updated and available to other participants in the platform.

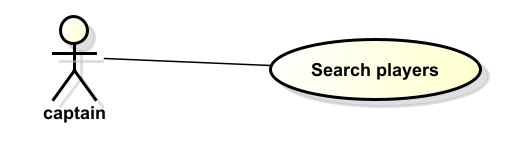

FR-07 - Player search

Field	Description
ID	FR-07
Requirement name	Player search
Microservice	Teams
Description	The system must allow captains to search for available participants using filters such as playing position, semester, age, gender, name, or identification number.
Preconditions	The captain must be authenticated and have a team created.
Actor	Captain
Main flow	1. The captain accesses the player search interface. 2. The captain selects the desired search filters. 3. The system processes the query. 4. The system displays a list of matching available participants.
Use case diagram
Postconditions	The captain can view a list of participants matching the search criteria.

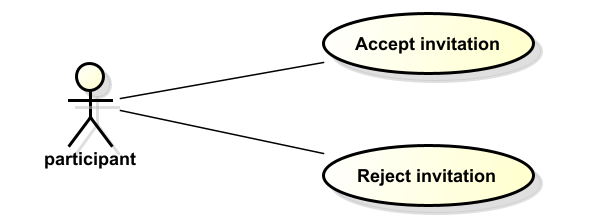

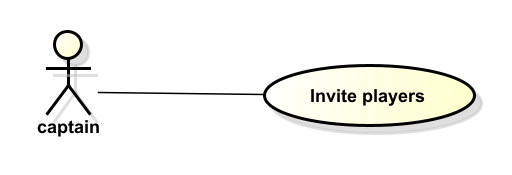

FR-08 - Team invitation management

Field	Description
ID	FR-08
Requirement name	Team invitation management
Microservice	Teams
Description	The system must allow captains to send invitations to available participants. Captains can accept or reject membership requests sent by players. Players can accept or reject invitations sent by captains.
Preconditions	The captain must have a team created and the participant must be available for recruitment.
Actor	Captain, Participant
Main flow	1. The captain selects a participant from the search results. 2. The captain sends an invitation to join the team. 3. The participant receives and reviews the invitation. 4. The participant accepts or rejects the invitation. 5. The system updates the team roster accordingly.
Use case diagram
Postconditions	If accepted, the participant becomes a member of the team.

FR-09 - Team membership validation

Field	Description
ID	FR-09
Requirement name	Team membership validation
Microservice	Teams
Description	The system must validate that a participant belongs to only one team at a time, that the team roster stays within 7–12 players, that no two players share the same jersey number, and that more than half of the members belong to the allowed engineering programs. A player cannot be removed from a team if there is an active or in-progress tournament.
Preconditions	A participant attempts to join a team through an accepted invitation or membership request.
Actor	System
Main flow	1. The participant accepts a team invitation. 2. The system verifies the participant does not already belong to another team. 3. The system validates roster size limits and jersey number uniqueness. 4. The system confirms or rejects the membership accordingly.
Use case diagram
Postconditions	The participant is successfully added to the team or the system prevents the action if validation rules are not met.

## FR-10 - Register team in tournament | Field | Description | |——|————-| | ID | US-07 | | Title | Register team in tournament | | Description | AS a captain I WANT to register my already-formed team in an active tournament by submitting a payment proof SO THAT the organizer can review and approve our participation. | | Priority | High | | Priority explanation| Team registration is the gateway to tournament participation: without approved registrations, no bracket or matches can be generated. | | Related requirement(s) | FR-07 Team registration management | | Requirement explanation | Registration management allows captains to enroll their teams in active tournaments and gives organizers full control over part/option through an approval workflow. | | Acceptance criteria | - The captain can register a team only when the tournament is ACTIVE.
- The system rejects registration if the deadline has passed.
- The system prevents duplicate registrations for the same team.
- The system enforces the maximum team capacity per tournament.
- The organizer can approve or reject a pending registration.
- The captain can cancel the registration while UNDER REVIEW.
- All registration actions are recorded in the audit log. |

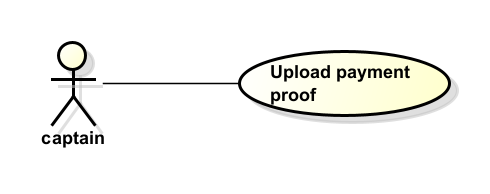

FR-10 - Payment receipt upload

Field	Description
ID	FR-10
Requirement name	Payment receipt upload
Microservice	Tournament
Description	The system must allow the captain to upload a payment proof image when registering the team for a tournament. Once uploaded, the inscription status is set to “Under review”. The captain may cancel the inscription only if it has not yet been approved or rejected. Payments are not processed within the platform.
Preconditions	The captain must have a team with the minimum number of players. The tournament must be in Active status and within the registration deadline.
Actor	Captain
Main flow	1. The captain accesses the tournament registration section. 2. The captain selects the active tournament. 3. The captain uploads the payment receipt image. 4. The system validates the file format. 5. The system stores the receipt and sets the inscription status to “Under review”.
Use case diagram
Postconditions	The payment receipt is stored and the inscription awaits review by the tournament organizer.

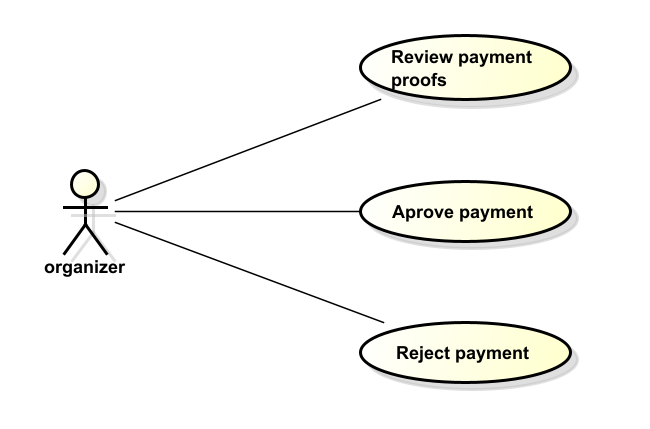

FR-11 - Payment validation

Field	Description
ID	FR-11
Requirement name	Payment validation
Microservice	Tournament
Description	The system must allow the organizer to review uploaded payment receipts and approve or reject them. Only teams with approved inscriptions may participate in the tournament. Possible inscription statuses are: Under review, Approved, Rejected, Cancelled.
Preconditions	A payment receipt must have been uploaded by a team captain and be in “Under review” status.
Actor	Organizer
Main flow	1. The organizer accesses the payment review section. 2. The system displays the list of pending payment receipts. 3. The organizer selects a receipt and reviews the payment information. 4. The organizer approves or rejects the payment. 5. The system updates the inscription status and notifies the captain.
Use case diagram
Postconditions	The inscription status is updated. Only approved teams are eligible to participate in the tournament.

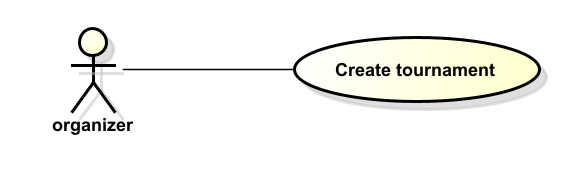

FR-12 - Tournament creation

Field	Description
ID	FR-12
Requirement name	Tournament creation
Microservice	Tournament
Description	The system must allow the organizer to create a new tournament by providing: start date, end date, registration deadline, number of teams, cost, and status. The default status at creation is “Draft”. The organizer can delete the tournament only while it is in Draft status.
Preconditions	The organizer must be authenticated in the system.
Actor	Organizer
Main flow	1. The organizer accesses the tournament management section. 2. The organizer selects the option to create a new tournament. 3. The organizer enters the required tournament information. 4. The system validates and stores the tournament with “Draft” status by default.
Use case diagram
Postconditions	A new tournament is created in Draft status and available for further configuration.

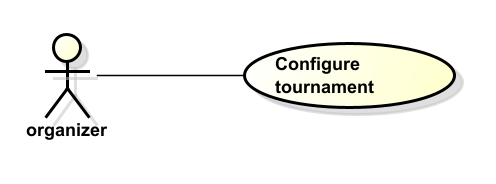

FR-13 - Tournament configuration

Field	Description
ID	FR-13
Requirement name	Tournament configuration
Microservice	Tournament
Description	The system must allow the organizer to configure tournament parameters including: regulations (PDF document), and fields (each field has a name, image, and description). This configuration is part of completing the tournament before activation.
Preconditions	A tournament must already exist in Draft or Active status and the organizer must be authenticated.
Actor	Organizer
Main flow	1. The organizer accesses the tournament configuration section. 2. The organizer selects the tournament to configure. 3. The organizer uploads the regulations PDF and adds field information. 4. The system validates and stores the configuration.
Use case diagram
Postconditions	The tournament regulations and fields are configured and visible to all users.

FR-14 - Tournament lifecycle management

Field	Description
ID	FR-14
Requirement name	Tournament lifecycle management
Microservice	Tournament
Description	The system must allow the organizer to manage the full lifecycle of a tournament by transitioning between the following states: Draft → Active → In Progress → Finished. Rules: a tournament can be activated at any time from Draft; it can only be started if the current date equals the start date; it can only be finished if the current date is on or after the end date.
Preconditions	The organizer must be authenticated. The tournament must exist and meet the date conditions for each transition.
Actor	Organizer
Main flow	1. The organizer accesses the tournament management section. 2. The organizer selects the tournament and triggers the desired status transition (Activate / Start / Finish). 3. The system validates the date conditions for the requested transition. 4. The system updates the tournament status.
Use case diagram
Postconditions	The tournament status is updated. Teams can only register during Active status. Matches take place during In Progress status.

FR-15 - Tournament registration cancellation

Field	Description
ID	FR-15
Requirement name	Tournament registration cancellation
Microservice	Tournament
Description	The system must allow a captain to cancel their team’s tournament inscription, provided the inscription has not yet been approved or rejected by the organizer. The inscription status will be updated to “Cancelled”.
Preconditions	The team must have an inscription in “Under review” status for an active tournament.
Actor	Captain
Main flow	1. The captain accesses the tournament registration section. 2. The captain selects the active inscription. 3. The captain requests cancellation. 4. The system verifies the inscription status is still “Under review”. 5. The system updates the inscription status to “Cancelled”.
Use case diagram
Postconditions	The inscription is cancelled and the team is no longer registered for that tournament.

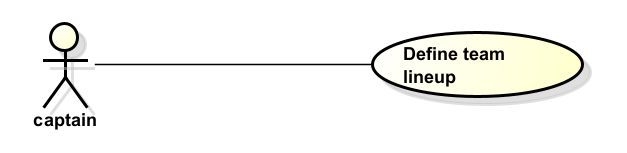

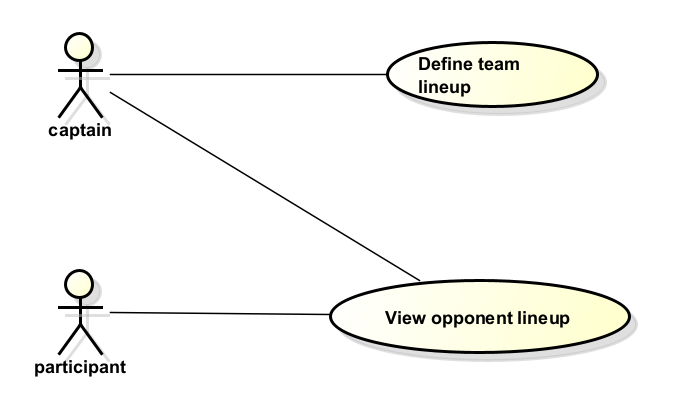

FR-16 - Team lineup management

Field	Description
ID	FR-16
Requirement name	Team lineup management
Microservice	Competition
Description	The system must allow captains to define the lineup for each match, including starters, substitutes, and tactical formation. Available formations are: 3-2-1, 2-3-1, 4-1-1, and 1-3-2. The default formation is 2-3-1. Lineups can only be viewed by players and captains of the same team.
Preconditions	The captain must have a registered team participating in the tournament. A match must be scheduled.
Actor	Captain
Main flow	1. The captain accesses the lineup management section. 2. The captain selects the upcoming match. 3. The captain assigns starters and substitutes and selects the formation. 4. The captain confirms the lineup. 5. The system stores the lineup information.
Use case diagram
Postconditions	The lineup for the selected match is registered and visible only to members of the same team.

FR-17 - Opponent lineup consultation

Field	Description
ID	FR-17
Requirement name	Opponent lineup consultation
Microservice	Competition
Description	The system must allow participants and captains to view the lineup of their own team for a match. Lineups of the opposing team are not publicly visible to the other team.
Preconditions	The lineup must have been previously registered by the team captain.
Actor	Participant, Captain
Main flow	1. The actor accesses the match information section. 2. The actor selects the match. 3. The system displays the lineup of the actor’s own team.
Use case diagram
Postconditions	The actor can view their team’s lineup for the selected match.

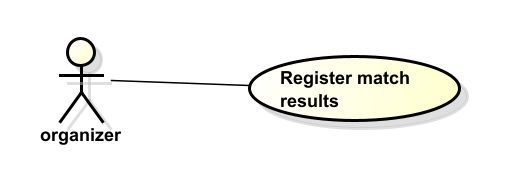

FR-18 - Match result registration

Field	Description
ID	FR-18
Requirement name	Match result registration
Microservice	Competition
Description	The system must allow the organizer to register match results including: final score, goals (linked to the player who scored), yellow cards, and red cards. The organizer may also delete a match if teams are disqualified or do not show up.
Preconditions	The match must have been previously scheduled in the system and be in In Progress tournament status.
Actor	Organizer
Main flow	1. The organizer accesses the match management section. 2. The organizer selects the completed match. 3. The organizer registers the score, scorers, yellow cards, and red cards. 4. The system stores the results and triggers automatic standings recalculation.
Use case diagram
Postconditions	The match results are recorded and the standings table is automatically updated.

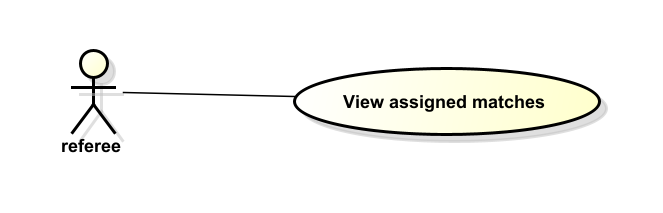

FR-19 - Match consultation for referees

Field	Description
ID	FR-19
Requirement name	Match consultation for referees
Microservice	Competition
Description	The system must allow referees to consult their assigned matches including: date, time, field, participating teams, and sanctioned players.
Preconditions	The referee must be authenticated. Matches must be scheduled and assigned to the referee.
Actor	Referee
Main flow	1. The referee accesses the match consultation section. 2. The system displays only matches assigned to that referee. 3. The referee selects a match to view its details including sanctioned players.
Use case diagram
Postconditions	The referee can view all relevant details of their assigned matches.

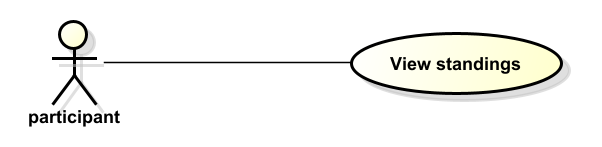

FR-20 - Standings calculation

Field	Description
ID	FR-20
Requirement name	Standings calculation
Microservice	Competition
Description	The system must automatically calculate and display tournament standings per team after each match result is registered. Statistics include: matches played, wins, draws, losses, goals for, goals against, goal difference, and points. All users can view standings.
Preconditions	Match results must have been registered in the system.
Actor	System
Main flow	1. A match result is registered. 2. The system recalculates statistics for the involved teams. 3. The system updates the standings table automatically.
Use case diagram
Postconditions	The standings table reflects the latest match results and is visible to all users.

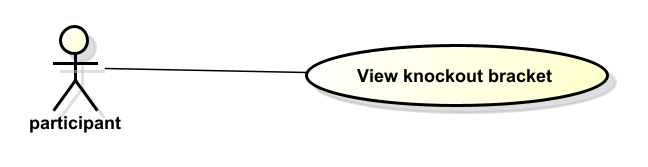

FR-21 - Knockout bracket generation

Field	Description
ID	FR-21
Requirement name	Knockout bracket generation
Microservice	Competition
Description	The system must automatically generate the knockout stage brackets including quarterfinals, semifinals, and the final. Initial matches are generated randomly. All users can view bracket information.
Preconditions	Approved teams must be registered in the tournament. The group stage must be completed and standings must be available.
Actor	System
Main flow	1. The system identifies the approved and qualified teams. 2. The system randomly generates the initial bracket matchups. 3. The system schedules quarterfinal, semifinal, and final matches. 4. Results update the bracket automatically as matches are played.
Use case diagram
Postconditions	The knockout stage structure is created and visible to all users.

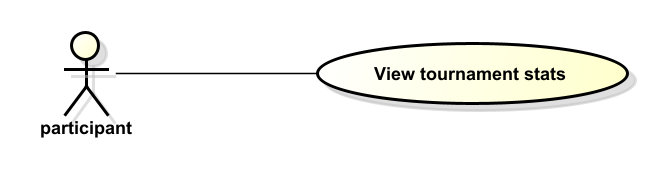

FR-22 - Tournament statistics consultation

Field	Description
ID	FR-22
Requirement name	Tournament statistics consultation
Microservice	Competition
Description	The system must allow all users to consult general tournament statistics including: top scorers, match history, and team performance results.
Preconditions	Match results and statistics must be available in the system.
Actor	All users
Main flow	1. The actor accesses the statistics section. 2. The actor selects the desired statistics category (top scorers, match history, team results). 3. The system retrieves and displays the statistics.
Use case diagram
Postconditions	The requested tournament statistics are displayed to the user.

FR-23 - User logout

FR-24 - Authenticated user consultation

FR-25 - Role management by administrator

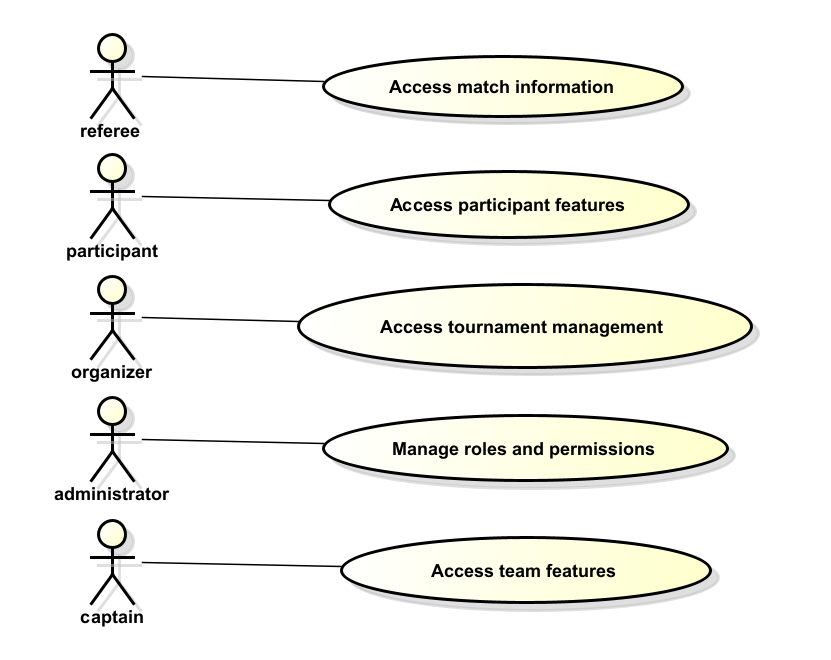

NFR-01 - Role-based access control

Field	Description
ID	NFR-01
Requirement Name	Role-based access control
Description	The system must enforce role-based access control (RBAC) to ensure that users can only access functionalities permitted by their role. Roles include: guest, player, captain, organizer, referee, and administrator. The administrator can assign, remove, and consult any user’s role. The organizer cannot escalate any user to administrator.
Preconditions	Users must be authenticated in the system.
Actor	Administrator
Main Flow	1. A user attempts to access a system function. 2. The system verifies the user’s role via the JWT token. 3. The system checks whether the role has permission for the requested action. 4. The system allows or denies access accordingly.
Use Case Diagram
Postconditions	System access is restricted according to the permissions assigned to each role.

NFR-02 - Audit logging

Field	Description
ID	NFR-02
Requirement Name	Audit logging
Description	The system must maintain audit logs of relevant actions across all microservices. Actions to be logged include: login, logout, user registration, profile updates, team creation/update/inactivation, tournament creation/update/inactivation, inscription changes, and match creation/update/deletion.
Preconditions	Users must be interacting with the platform.
Actor	Administrator
Main Flow	1. A user performs an auditable action within the system. 2. The system records the action, timestamp, and user in the audit log. 3. The administrator can consult the recorded logs.

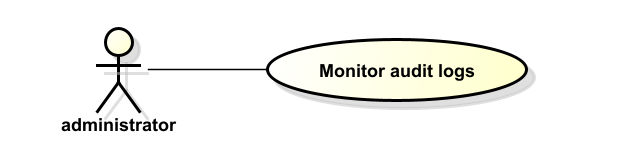

Use Case Diagram
Postconditions	Relevant system actions are recorded and available for administrative monitoring and security review.

NFR-03 - REST API architecture

NFR-04 - Layered backend architecture

NFR-05 - Web frontend technology

NFR-06 - Database technology

NFR-07 - Image storage technology

NFR-08 - System performance

NFR-09 - System availability

NFR-10 - System security

NFR-11 - JWT token management

NFR-12 - API Gateway routing and validation

NFR-13 - Health monitoring endpoint

NFR-14 - Continuous integration and automated testing
