This section explains how the Competition Service was built and how it fits into the TechCup platform architecture.
Competition Service
Dependencies
Parent
- spring-boot-starter-parent – Base Spring Boot POM used to manage dependency versions and build configuration.
Runtime dependencies
- spring-boot-starter-web – Enables REST API development with Spring MVC.
- spring-boot-starter-data-jpa – Provides ORM support and repository abstraction with JPA/Hibernate.
- spring-boot-starter-validation – Enables request validation using annotations such as
@Validand@NotNull. - postgresql – PostgreSQL JDBC driver used for persistence.
- spring-cloud-starter-openfeign – Allows communication with Tournament Service and Teams Service through Feign Clients.
- spring-boot-starter-actuator – Exposes health and monitoring endpoints.
- lombok – Reduces boilerplate code through annotations.
- mapstruct – Generates DTO/entity mappers automatically.
- springdoc-openapi-starter-webmvc-ui – Generates Swagger/OpenAPI documentation.
- jjwt-api / jjwt-impl / jjwt-jackson – Used to validate JWT tokens forwarded by the API Gateway.
Test dependencies
- spring-boot-starter-test – Includes JUnit, Mockito and AssertJ.
- h2 – In-memory database for testing.
- testcontainers-postgresql – PostgreSQL integration testing support.
Build plugins
- spring-boot-maven-plugin – Packages the service as an executable JAR.
- maven-compiler-plugin – Configured for Lombok and MapStruct annotation processing.
Diagrams & JPA

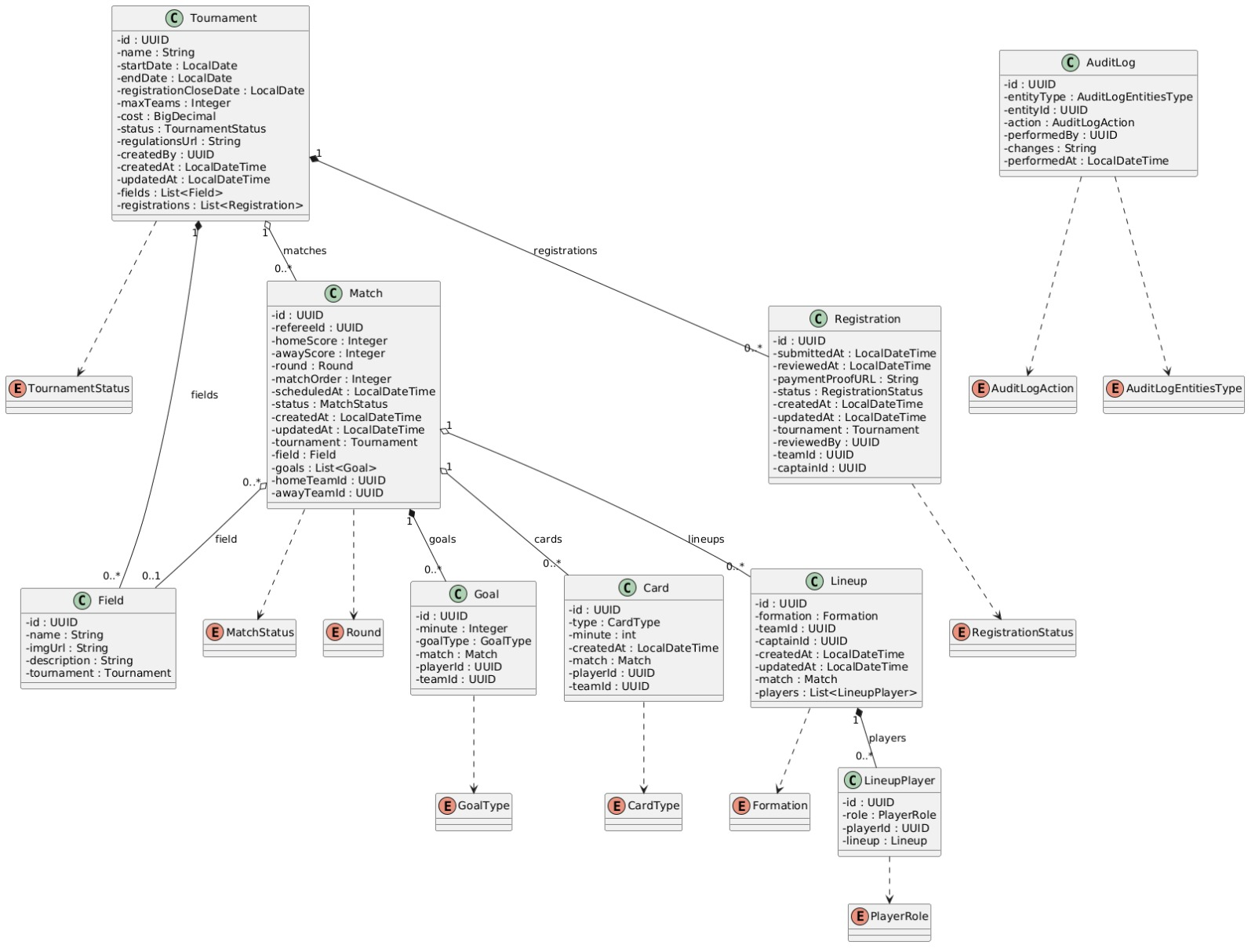

The class diagram used for the models is the following:

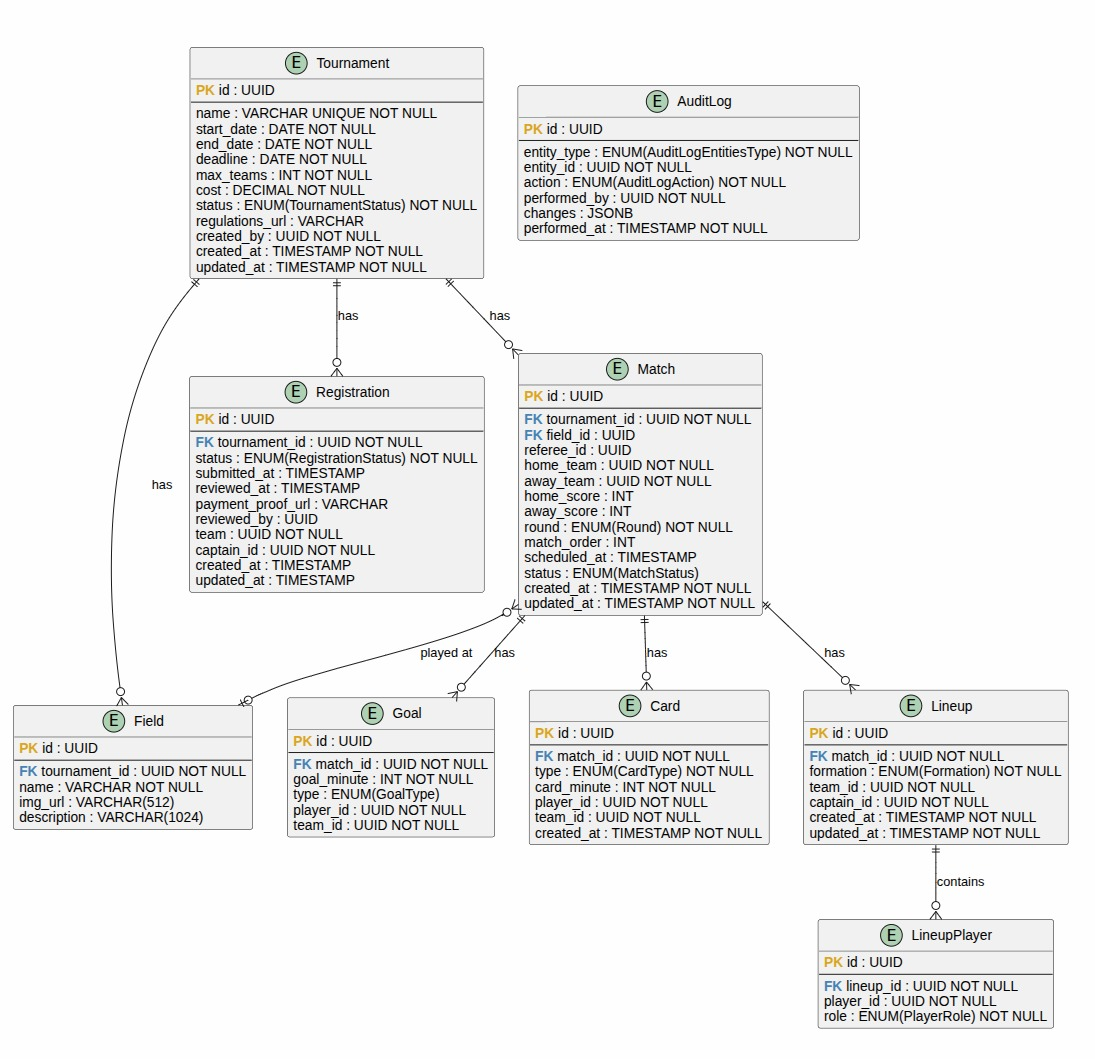

The entity-relation diagram used for JPA is the following:
Entities
matches
Stores all scheduled matches for tournaments.
| Column | Type | Notes |
|---|---|---|
id |
UUID PK |
Auto-generated |
tournament_id |
UUID FK |
Tournament reference |
home_team_id |
UUID |
Team reference |
away_team_id |
UUID |
Team reference |
scheduled_at |
TIMESTAMP |
Match date and time |
status |
ENUM |
SCHEDULED · IN_PROGRESS · FINISHED · CANCELLED |
home_score |
INTEGER |
Local team score |
away_score |
INTEGER |
Away team score |
standings
Stores tournament standings and statistics for each team.
| Column | Type | Notes |
|---|---|---|
id |
UUID PK |
Auto-generated |
tournament_id |
UUID FK |
Tournament reference |
team_id |
UUID |
Team reference |
points |
INTEGER |
Total points |
wins |
INTEGER |
Matches won |
draws |
INTEGER |
Matches drawn |
losses |
INTEGER |
Matches lost |
goals_for |
INTEGER |
Goals scored |
goals_against |
INTEGER |
Goals conceded |
goals
Stores goals scored during matches.
| Column | Type | Notes |
|---|---|---|
id |
UUID PK |
Auto-generated |
match_id |
UUID FK |
Match reference |
player_id |
UUID |
Player reference |
team_id |
UUID |
Team reference |
minute |
INTEGER |
Goal minute |
Endpoints
Matches
| Method | Path | Auth required | Description |
|---|---|---|---|
POST |
/api/v1/matches |
Bearer (ORGANIZER) |
Creates a match schedule. |
GET |
/api/v1/matches/{id} |
No | Returns match details. |
GET |
/api/v1/matches/tournament/{id} |
No | Lists tournament matches. |
PATCH |
/api/v1/matches/{id}/start |
Bearer (ORGANIZER) |
Starts a match. |
PATCH |
/api/v1/matches/{id}/finish |
Bearer (ORGANIZER) |
Finishes a match and registers result. |
Standings
| Method | Path | Auth required | Description |
|---|---|---|---|
GET |
/api/v1/standings/{tournamentId} |
No | Returns tournament standings. |
GET |
/api/v1/standings/{tournamentId}/teams/{teamId} |
No | Returns team statistics. |
Statistics
| Method | Path | Auth required | Description |
|---|---|---|---|
GET |
/api/v1/stats/top-scorers/{tournamentId} |
No | Returns top scorers. |
GET |
/api/v1/stats/matches/{tournamentId} |
No | Returns match history. |
Inter-service communication
The Competition Service communicates directly with other services using OpenFeign.
| Called service | Purpose |
|---|---|
| Tournament Service | Validate tournament status and dates |
| Teams Service | Validate participating teams |
| Users & Players Service | Retrieve player information for statistics |
The API Gateway injects authentication headers (X-User-Id, X-User-Role) into forwarded requests.
Match state machine
SCHEDULED ──► IN_PROGRESS ──► FINISHED
│
└──► CANCELLED
