This section explains how the Teams Service was built and how it fits into the TechCup platform architecture.
Teams Service
Dependencies
Parent
- spring-boot-starter-parent – Base Spring Boot POM (v3.4.1). Manages dependency versions and build defaults.
Runtime dependencies
- spring-boot-starter-web – Enables REST APIs via Spring MVC with an embedded Tomcat server.
- spring-boot-starter-data-jpa – Maps Java entities to database tables and provides repository interfaces for CRUD operations.
- spring-boot-starter-validation – Enables bean validation (
@Valid,@NotBlank, etc.) on request bodies. - postgresql – JDBC driver that connects the service to its own PostgreSQL database at runtime.
- spring-cloud-starter-openfeign – Allows communication with external microservices through declarative HTTP clients.
- spring-boot-starter-actuator – Exposes monitoring endpoints such as
/actuator/health. - mapstruct (v1.6.3) – Generates type-safe mappers between entities and DTOs.
- lombok – Reduces boilerplate code through annotations.
- spring-boot-devtools – Enables automatic restart during development.
- springdoc-openapi-starter-webmvc-ui (v2.8.0) – Generates Swagger UI documentation at
/swagger-ui/index.html. - jjwt-api / jjwt-impl / jjwt-jackson (v0.12.6) – JWT library used for token validation and authentication support.
Test dependencies
- spring-boot-starter-test – Includes JUnit 5, Mockito, and AssertJ.
- testcontainers:postgresql (v1.20.4) – Runs PostgreSQL containers during integration testing.
- testcontainers:junit-jupiter (v1.20.4) – JUnit integration for Testcontainers.
- h2 – In-memory database for lightweight tests.
Build plugins
- spring-boot-maven-plugin – Packages the microservice as a runnable JAR.
- maven-compiler-plugin – Configured for Lombok and MapStruct annotation processing.
Dependency management
- spring-cloud-dependencies BOM (v2024.0.0) – Ensures compatibility between Spring Cloud libraries.
Diagrams & JPA

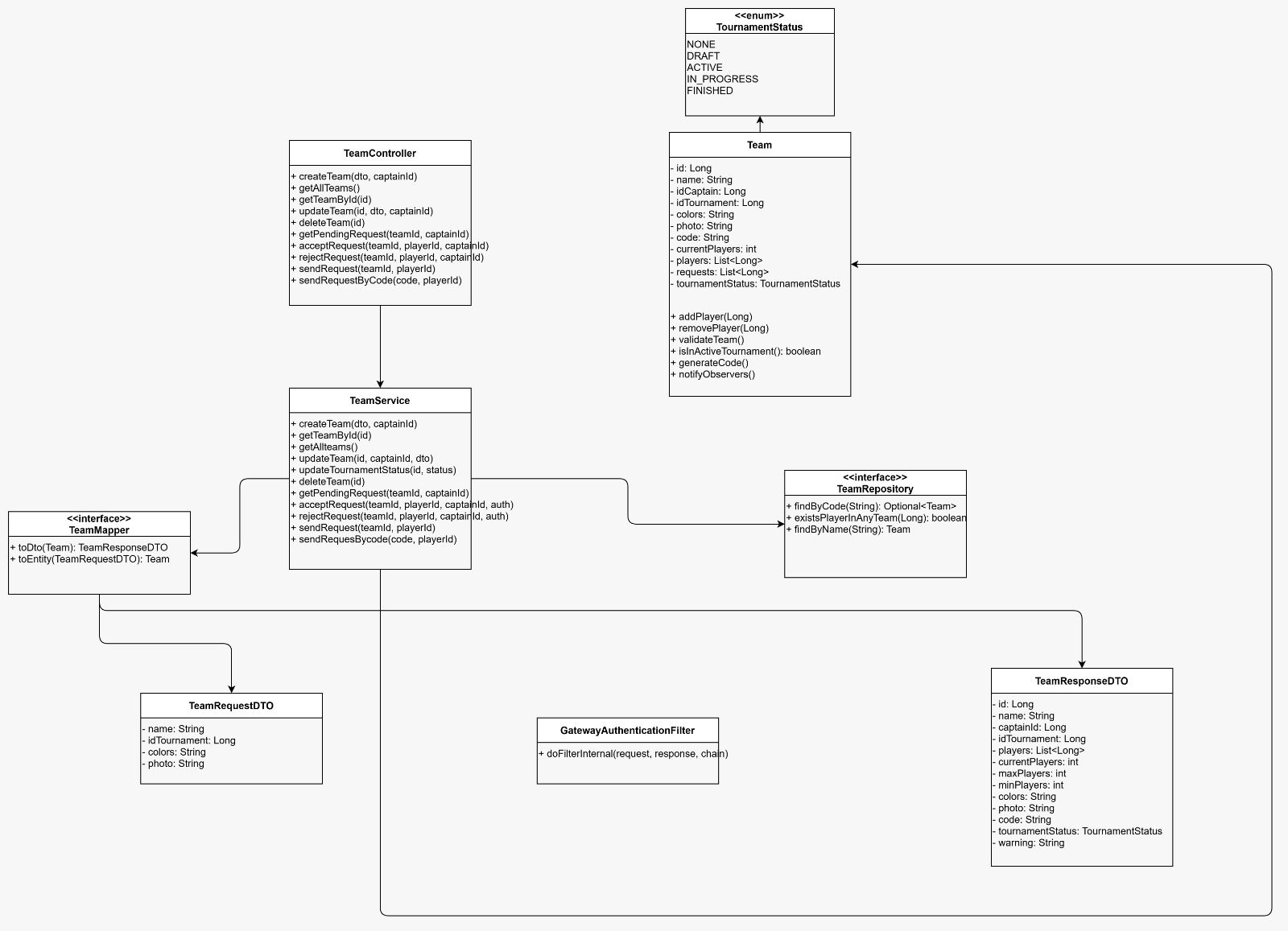

The class diagram used for the models is the following:
The entity-relation diagram used for JPA is the following:
The entities defined for this service are:
teams
Stores the general information and configuration of each football team.
| Column | Type | Notes |
|---|---|---|
id |
UUID PK |
Auto-generated |
name |
VARCHAR(100) |
Unique team name |
logo_url |
VARCHAR |
Optional team logo |
description |
VARCHAR |
Optional team description |
captain_id |
UUID |
Cross-service reference to Identity Service |
created_at |
TIMESTAMP |
Automatically generated |
updated_at |
TIMESTAMP |
Automatically updated |
team_members
Stores the players that belong to a team.
| Column | Type | Notes |
|---|---|---|
id |
UUID PK |
Auto-generated |
team_id |
UUID FK |
References teams.id |
player_id |
UUID |
Cross-service reference to Users & Players Service |
jersey_number |
INTEGER |
Optional jersey number |
position |
ENUM |
GOALKEEPER · DEFENDER · MIDFIELDER · FORWARD |
joined_at |
TIMESTAMP |
Date when the player joined the team |
team_invitations
Stores invitations sent to players to join teams.
| Column | Type | Notes |
|---|---|---|
id |
UUID PK |
Auto-generated |
team_id |
UUID FK |
References teams.id |
player_id |
UUID |
Cross-service reference to Users & Players Service |
status |
ENUM |
PENDING · ACCEPTED · REJECTED |
sent_at |
TIMESTAMP |
Invitation creation timestamp |
responded_at |
TIMESTAMP |
Optional response timestamp |
team_requests
Stores requests sent by players asking to join a team.
| Column | Type | Notes |
|---|---|---|
id |
UUID PK |
Auto-generated |
team_id |
UUID FK |
References teams.id |
player_id |
UUID |
Cross-service reference to Users & Players Service |
status |
ENUM |
PENDING · APPROVED · REJECTED |
requested_at |
TIMESTAMP |
Request creation timestamp |
reviewed_at |
TIMESTAMP |
Optional review timestamp |
team_statistics
Stores accumulated statistics for each team.
| Column | Type | Notes |
|---|---|---|
id |
UUID PK |
Auto-generated |
team_id |
UUID FK |
References teams.id |
matches_played |
INTEGER |
Default 0 |
wins |
INTEGER |
Default 0 |
draws |
INTEGER |
Default 0 |
losses |
INTEGER |
Default 0 |
goals_scored |
INTEGER |
Default 0 |
goals_conceded |
INTEGER |
Default 0 |
Cross-service references (
captain_id,player_id) are stored as primitive identifiers because the Teams Service does not own player or identity data. The real information lives in the Identity Service and Users & Players Service.
Endpoints
Team management
| Method | Path | Auth required | Description |
|---|---|---|---|
POST |
/api/v1/teams |
Bearer (CAPTAIN) |
Creates a new team. |
GET |
/api/v1/teams |
No | Returns all teams. |
GET |
/api/v1/teams/{id} |
No | Returns a team by ID. |
PUT |
/api/v1/teams/{id} |
Bearer (CAPTAIN) |
Updates team information. |
DELETE |
/api/v1/teams/{id} |
Bearer (CAPTAIN) |
Deletes a team. |
Team members
| Method | Path | Auth required | Description |
|---|---|---|---|
POST |
/api/v1/teams/{id}/members |
Bearer (CAPTAIN) |
Adds a player to the team. |
GET |
/api/v1/teams/{id}/members |
No | Returns all players in a team. |
DELETE |
/api/v1/teams/{id}/members/{playerId} |
Bearer (CAPTAIN) |
Removes a player from the team. |
Invitations
| Method | Path | Auth required | Description |
|---|---|---|---|
POST |
/api/v1/teams/{id}/invitations |
Bearer (CAPTAIN) |
Sends an invitation to a player. |
PATCH |
/api/v1/teams/invitations/{invitationId}/accept |
Bearer (PLAYER) |
Accepts a team invitation. |
PATCH |
/api/v1/teams/invitations/{invitationId}/reject |
Bearer (PLAYER) |
Rejects a team invitation. |
Join requests
| Method | Path | Auth required | Description |
|---|---|---|---|
POST |
/api/v1/teams/{id}/requests |
Bearer (PLAYER) |
Sends a request to join a team. |
PATCH |
/api/v1/teams/requests/{requestId}/approve |
Bearer (CAPTAIN) |
Approves a join request. |
PATCH |
/api/v1/teams/requests/{requestId}/reject |
Bearer (CAPTAIN) |
Rejects a join request. |
Statistics
| Method | Path | Auth required | Description |
|---|---|---|---|
GET |
/api/v1/teams/{id}/stats |
No | Returns statistics for a team. |
GET |
/api/v1/teams/ranking |
No | Returns the global team ranking. |
Inter-service communication
This service communicates directly with other microservices using OpenFeign instead of routing internal calls through the API Gateway.
| Called service | When | Purpose |
|---|---|---|
| Identity Service | During authenticated operations | Validate user identity and roles |
| Users & Players Service | When managing members | Validate player existence and retrieve player information |
| Tournament Service | During tournament registration flows | Verify team eligibility and registration state |
The API Gateway injects user information headers (X-User-Id, X-User-Role, X-User-Email) into forwarded requests. The Teams Service uses these headers to identify captains and players performing actions.
Team invitation state machine
text
PENDING ──► ACCEPTED
│
└──► REJECTED
