Users & Players Service

This section explains how the Users & Players Service was built and how it fits into the TechCup platform architecture.

Users & Players Service

Dependencies

Parent

spring-boot-starter-parent – Base Spring Boot POM (v3.4.1). Manages dependency versions and build defaults.

Runtime dependencies

spring-boot-starter-web – Enables REST APIs using Spring MVC with an embedded Tomcat server.
spring-boot-starter-data-jpa – Provides ORM mapping and CRUD repositories for PostgreSQL entities.
spring-boot-starter-validation – Enables DTO validation using annotations such as @Valid, @NotBlank, and @Size.
spring-boot-starter-data-mongodb – Allows storing and retrieving player profile photos in MongoDB.
postgresql – JDBC driver used for structured relational data persistence.
spring-cloud-starter-openfeign – Used for communication with external microservices such as Teams Service.
spring-boot-starter-actuator – Exposes monitoring endpoints such as /actuator/health.
mapstruct – Generates type-safe DTO/entity mappers at compile time.
lombok – Reduces boilerplate code using annotations.
springdoc-openapi-starter-webmvc-ui – Generates Swagger/OpenAPI documentation.
jjwt-api / jjwt-impl / jjwt-jackson – Used to validate JWT tokens forwarded by the gateway.

Test dependencies

spring-boot-starter-test – Includes JUnit 5, Mockito, and AssertJ for testing.
testcontainers:postgresql – Runs PostgreSQL containers during integration tests.
testcontainers:junit-jupiter – Integrates Testcontainers with JUnit 5 lifecycle.
h2 – In-memory database for lightweight tests.

Build plugins

spring-boot-maven-plugin – Packages the service as an executable JAR.
maven-compiler-plugin – Configured for Lombok and MapStruct annotation processing.

Dependency management

spring-cloud-dependencies BOM – Ensures compatibility between Spring Cloud libraries.

Diagrams & Persistence

The class diagram used for the models is the following:

Class diagram

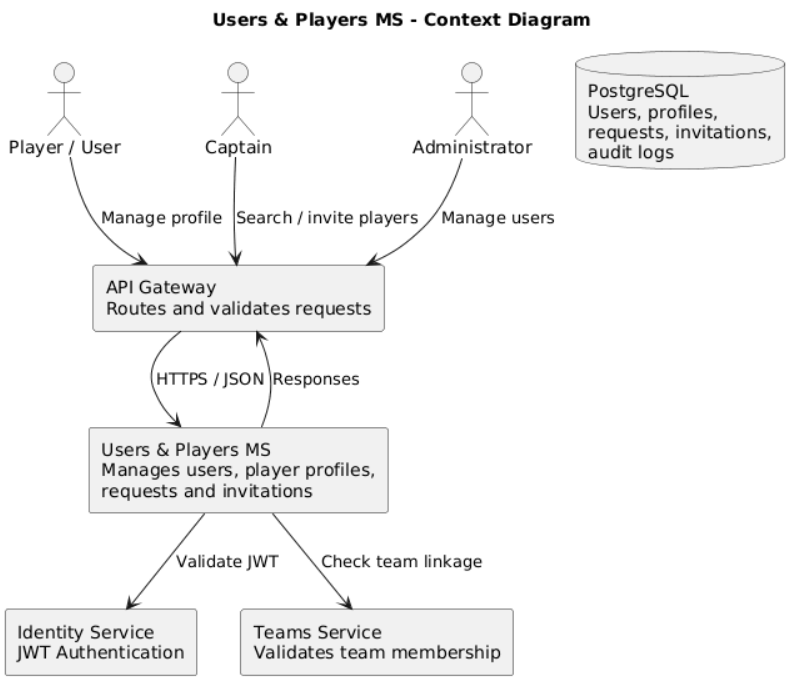

The container diagram used for the architecture is the following:

Container diagram

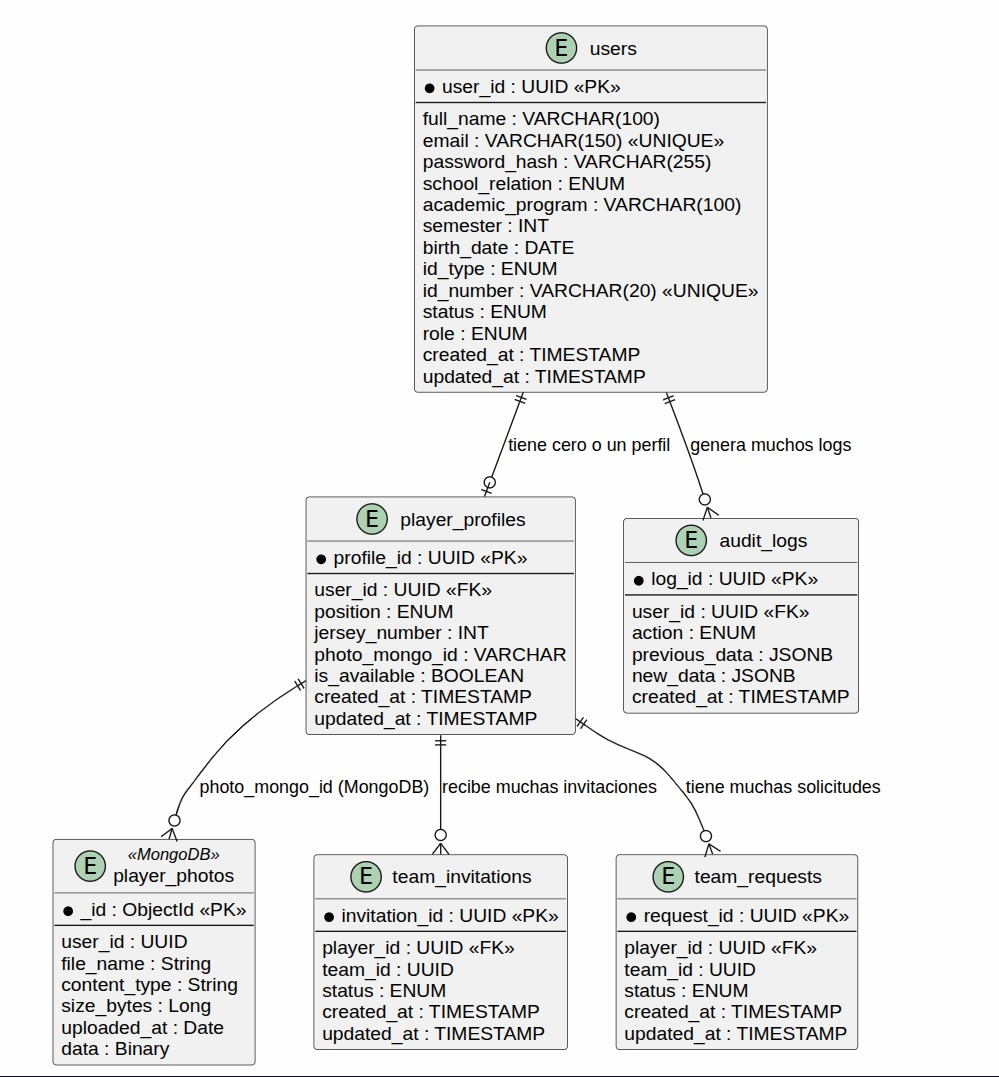

The entity-relation diagram used for JPA is the following:

Entity-relation diagram

Entities

`users`

Stores the personal and academic information of platform users.

Column	Type	Notes
`id`	`UUID PK`	Auto-generated
`full_name`	`VARCHAR(120)`	User full name
`email`	`VARCHAR(120)`	Unique institutional email
`school_relation`	`ENUM`	`STUDENT · PROFESSOR · GRADUATE · STAFF · FAMILY_MEMBER · ADMIN`
`academic_program`	`VARCHAR(120)`	Optional depending on relation
`semester`	`INTEGER`	Only valid for students
`status`	`ENUM`	`ACTIVE · INACTIVE`
`birth_date`	`DATE`	User birth date
`identification`	`VARCHAR(30)`	Government identification
`created_at`	`TIMESTAMP`	Automatically generated
`updated_at`	`TIMESTAMP`	Automatically updated

`player_profiles`

Stores sports-related information for users with Player role.

Column	Type	Notes
`id`	`UUID PK`	Auto-generated
`user_id`	`UUID FK`	References `users.id`
`position`	`ENUM`	`GOALKEEPER · DEFENDER · MIDFIELDER · FORWARD`
`jersey_number`	`INTEGER`	Player jersey number
`photo_id`	`VARCHAR`	MongoDB document reference
`availability_status`	`ENUM`	`AVAILABLE · LINKED`
`created_at`	`TIMESTAMP`	Automatically generated
`updated_at`	`TIMESTAMP`	Automatically updated

`team_requests`

Stores player requests to join teams.

Column	Type	Notes
`id`	`UUID PK`	Auto-generated
`player_id`	`UUID FK`	References `player_profiles.id`
`team_id`	`UUID`	Cross-service reference to Teams Service
`status`	`ENUM`	`PENDING · ACCEPTED · REJECTED · CANCELED`
`created_at`	`TIMESTAMP`	Automatically generated
`updated_at`	`TIMESTAMP`	Automatically updated

`team_invitations`

Stores invitations sent from teams to players.

Column	Type	Notes
`id`	`UUID PK`	Auto-generated
`player_id`	`UUID FK`	References `player_profiles.id`
`team_id`	`UUID`	Cross-service reference to Teams Service
`status`	`ENUM`	`PENDING · ACCEPTED · REJECTED`
`created_at`	`TIMESTAMP`	Automatically generated
`updated_at`	`TIMESTAMP`	Automatically updated

`audit_logs`

Stores traceability information for relevant actions.

Column	Type	Notes
`id`	`UUID PK`	Auto-generated
`entity_type`	`ENUM`	`USER · PLAYER_PROFILE · REQUEST · INVITATION`
`entity_id`	`UUID`	ID of affected entity
`action`	`VARCHAR`	`CREATED · UPDATED · STATUS_CHANGED`
`performed_by`	`UUID`	User performing the action
`details`	`JSON`	Additional context
`timestamp`	`TIMESTAMP`	Defaults to `NOW()`

Cross-service references to teams are stored as primitive UUIDs because the Users & Players Service does not own team entities.

Endpoints

User management

Method	Path	Auth required	Description
`GET`	`/api/v1/users/{id}`	Bearer	Returns a user profile.
`PUT`	`/api/v1/users/{id}`	Bearer	Updates user personal information.
`PATCH`	`/api/v1/users/{id}/status`	Bearer (`ADMIN`)	Changes user status to ACTIVE or INACTIVE.
`GET`	`/api/v1/users`	Bearer (`ADMIN`)	Returns paginated and filtered users.

Sports profiles

Method	Path	Auth required	Description
`POST`	`/api/v1/players/profile`	Bearer (`PLAYER`)	Creates a sports profile.
`GET`	`/api/v1/players/profile/{userId}`	Bearer	Returns a sports profile.
`PUT`	`/api/v1/players/profile`	Bearer (`PLAYER`)	Updates sports profile data.
`DELETE`	`/api/v1/players/profile/{userId}`	Bearer	Returns 405 Method Not Allowed.

Team requests

Method	Path	Auth required	Description
`POST`	`/api/v1/players/requests`	Bearer (`PLAYER`)	Sends a request to join a team.
`GET`	`/api/v1/players/requests`	Bearer (`PLAYER`)	Returns request history.
`PATCH`	`/api/v1/players/requests/{id}/cancel`	Bearer (`PLAYER`)	Cancels a pending request.

Team invitations

Method	Path	Auth required	Description
`POST`	`/api/v1/players/invitations`	Internal service	Registers a team invitation.
`GET`	`/api/v1/players/invitations`	Bearer (`PLAYER`)	Returns received invitations.
`PATCH`	`/api/v1/players/invitations/{id}`	Bearer (`PLAYER`)	Accepts or rejects an invitation.

Audit

Method	Path	Auth required	Description
`GET`	`/api/v1/audit`	Bearer (`ADMIN`)	Returns filtered audit logs.

Inter-service communication

This service communicates directly with external services using OpenFeign.

Called service	When	Purpose
Teams Service	Requests and invitations	Validate team linkage and player availability
Identity Service	Authentication and authorization	Validate JWT roles and identities

The gateway injects authentication headers such as X-User-Id and X-User-Role into forwarded requests.

Player request state machine

PENDING ──► ACCEPTED
   │
   └──► REJECTED
   │
   └──► CANCELED
